Cloud Services, Cloud Services | Exadata | Linux

AWS RDS: Reading Oracle Traces from SQL*Plus

 , ,

Hi all,

One more for AWS services. Let’s say you need to read trace files from RDS, how to do it?

Here is an example of how to list and read those files based on the directories from the database setting. To see the existent directories:

SQL> select * from dba_directories;

OWNER DIRECTORY_NAME DIRECTORY_PATH ORIGIN_CON_ID
---------- ------------------------- ------------------------------------------------------------ -------------
SYS BDUMP /rdsdbdata/log/trace 0
SYS ADUMP /rdsdbdata/log/audit 0
SYS OPATCH_LOG_DIR /rdsdbbin/oracle/QOpatch 0
SYS OPATCH_SCRIPT_DIR /rdsdbbin/oracle/QOpatch 0
SYS DATA_PUMP_DIR /rdsdbdata/datapump 0
SYS OPATCH_INST_DIR /rdsdbbin/oracle/OPatch 0
SYS TMP /rdsdbdata/userdirs/01 0

7 rows selected.

Once identified the directory needed, we can list the file as per:

SQL> select * from table (rdsadmin.rds_file_util.listdir( p_directory => 'BDUMP')) order by mtime;

FILENAME TYPE FILESIZE MTIME
---------------------------------------- ---------- ---------- ---------
CPROD1_ora_48800.trm file 73 24-DEC-18
CPROD1_ora_48800.trc file 998 24-DEC-18
CPROD1_ora_86597.trc file 998 24-DEC-18
CPROD1_ora_86597.trm file 73 24-DEC-18
CPROD1_ora_7999.trc file 881 24-DEC-18
CPROD1_ora_7999.trm file 71 24-DEC-18
CPROD1_ora_7997.trm file 71 24-DEC-18
CPROD1_ora_7997.trc file 881 24-DEC-18
CPROD1_ora_8240.trm file 71 24-DEC-18
CPROD1_ora_8240.trc file 881 24-DEC-18
CPROD1_ora_8381.trm file 72 24-DEC-18
CPROD1_ora_8381.trc file 995 24-DEC-18
CPROD1_ora_8540.trc file 881 24-DEC-18
CPROD1_ora_8540.trm file 71 24-DEC-18
CPROD1_ora_9876.trc file 881 24-DEC-18
CPROD1_ora_9876.trm file 71 24-DEC-18
CPROD1_ora_11142.trm file 72 24-DEC-18
CPROD1_ora_11142.trc file 883 24-DEC-18
CPROD1_ora_11182.trc file 883 24-DEC-18
CPROD1_ora_11182.trm file 72 24-DEC-18
CPROD1_ora_55077.trm file 73 24-DEC-18
CPROD1_ora_55077.trc file 997 24-DEC-18
CPROD1_ora_92260.trm file 73 24-DEC-18
CPROD1_ora_92260.trc file 997 24-DEC-18
CPROD1_ora_123869.trc file 1000 24-DEC-18
CPROD1_ora_123869.trm file 74 24-DEC-18
CPROD1_ora_41305.trc file 998 24-DEC-18
CPROD1_ora_41305.trm file 73 24-DEC-18
CPROD1_j002_3293.trc file 114049 24-DEC-18
CPROD1_j002_3293.trm file 370 24-DEC-18
CPROD1_mmon_71739.trc file 7511332 24-DEC-18
CPROD1_mmon_71739.trm file 738330 24-DEC-18
CPROD1_ora_92888.trc file 997 24-DEC-18
CPROD1_ora_92888.trm file 73 24-DEC-18
trace/ directory 323584 24-DEC-18
alert_CPROD1.log file 204808 24-DEC-18
CPROD1_ora_70145.trc file 1470 24-DEC-18
CPROD1_ora_70145.trm file 109 24-DEC-18

3845 rows selected.

With the trace file name confirmed, you can see the content with the following:

SQL> select * from table (rdsadmin.rds_file_util.read_text_file( p_directory => 'BDUMP', p_filename => 'trace/CPROD1_s003_81573.trc'));

From the trace file:
=========================
..................................................................................
index undo for leaf key operations
KTB Redo
op: 0x02 ver: 0x01
compat bit: 4 (post-11) padding: 1
op: C uba: 0x000e289e.51da.47
Dump kdilk : itl=98, kdxlkflg=0x1 sdc=0 indexid=0x1c53db block=0x0019bdc0
(kdxlpu): purge leaf row
key :(24):
07 78 76 0c 17 17 09 32 08 c7 07 1a 02 28 15 01 18 06 00 1a 3c 99 00 1e

File 3 is not mirrored.

End dump previous blocks for kdsgrp
* kdsgrp1-2: ***********************************************
kdsDumpState: RID context dump

45511581 rows selected.

Also, as a side note, something that may help you out is the listing with LIKE clause:

SQL> select * from table (rdsadmin.rds_file_util.listdir( p_directory => 'BDUMP')) where filename like '%CPROD1_s003_81573.trc%';

FILENAME TYPE FILESIZE MTIME
---------------------------------------- ---------- ---------- ---------
CPROD1_s003_81573.trc file 1948134047 23-DEC-18

I hope it helps! See you next post!

AWS Summit Online – Américas

O AWS Summit Online foi projetado para desenvolvedores e profissionais de TI que desejam aprender como construir e inovar em grande escala usando a Nuvem AWS. Fique sabendo das novidades trazidas diretamente pelos executivos da AWS, participe de sessões paralelas com histórias de clientes e converse com especialistas da AWS para obter respostas às suas perguntas. Melhore suas habilidades com laboratórios práticos, aprenda com demonstrações inspiradoras e descubra o que a AWS e as soluções de parceiros podem fazer para o seu negócio.

Esta conferência online gratuita foi desenvolvida para informar você sobre os serviços da AWS e ajudar no desenvolvimento, na implantação e na operação de sua infraestrutura e aplicações.

Cloud Services | Exadata | Linux

AWS AQUA for Redshift

 , ,

Hi all,

Quick one today. Did you see this new release? I’m a bit behind the schedule but trying to catch up with the news. It seems very interesting:

AQUA (Advanced Query Accelerator) for Amazon Redshift is available in preview. AQUA provides a new distributed and hardware-accelerated cache that brings compute to the storage layer for Amazon Redshift and delivers up to 10x faster query performance than other cloud data warehouses.

AQUA is a high-speed cache on top of Redshift Managed Storage that can scale out and process data in parallel across many AQUA nodes. AQUA uses AWS-designed analytics processors that dramatically accelerate data compression, encryption, and data processing on queries that scan, filter, and aggregate large data sets. With this new architecture, customers can run queries quicker than ever before, allowing them to query data directly, even at scale, and giving them more up-to-date dashboards, reducing development time, and making system maintenance easier.

It is available for preview in US East (Ohio), US East (N. Virginia), and US West (Oregon) regions at this point.

For more references:

  • There is a very tech detailed article about it HERE.
  • There is also a very nice TechTalk presenting it HERE.

Let’s keep up to date!

Cloud Services | Exadata | Linux

AWS CloudFormation

 ,

Hello everyone,

We are going to start one series of posts where we are going to show the AWS CloudFormation usage.

The nexts post going to abord a creation one RDS, DMS using AWS cloudFormation stack. In this series we’re going to showcase AWS CloudFormation by creating one RDS and one DMS.

First one fast introduction about AWS cloudFormation.

Let start to explain AWS CloudFormation

” AWS CloudFormation provides a common language for you to model and provision AWS and third party application resources in your cloud environment.”

In practice it’s a json/yaml file, where we can describe instructions to create AWS services.

Let’s  code!.

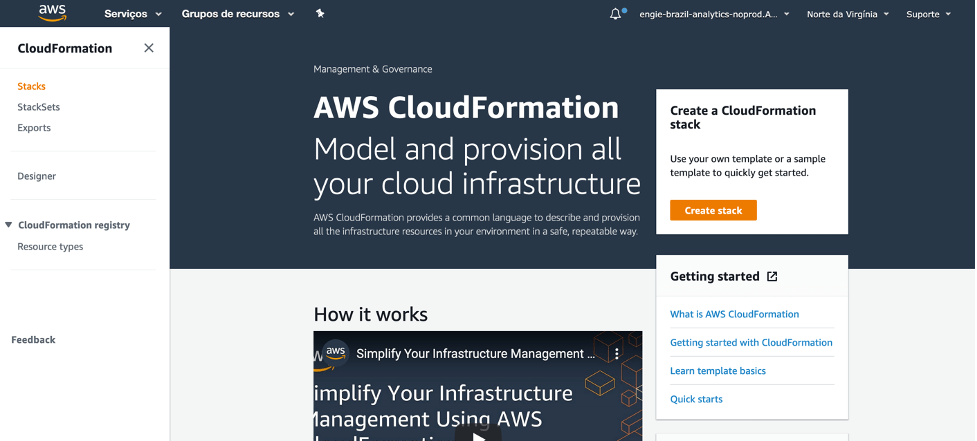

First step that we need is connect to AWS Console. In the search field type CloudFormation like the picture below.

Click on CloudFormation to open the service console.



Click on Stacks.

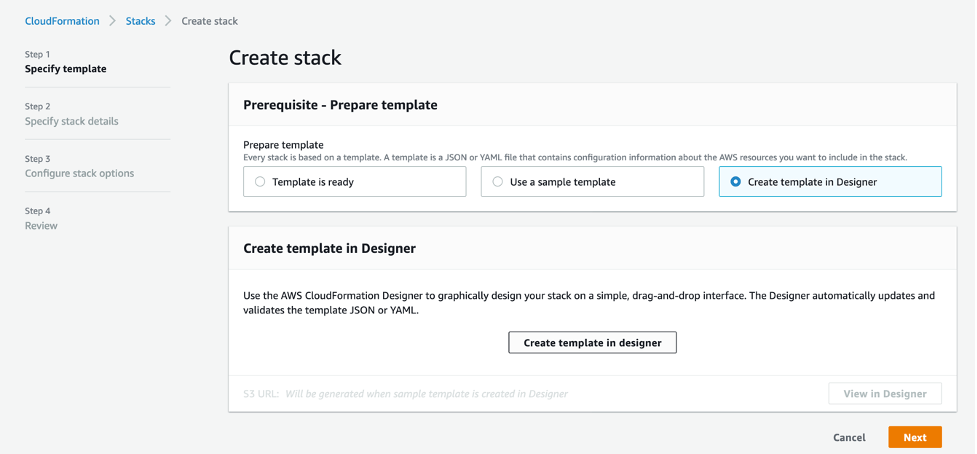

After this, click on create a new stack and select “with new resources”

We are going to click on Create template in designer and you will be redirected to page like below.



Click on Template and the code editor is going to open.

The next step will be to create one script to deploy a service. In this example, we going to use a DMS script and a RDS Postgresql. The examples used in this article are available in the next article.

To execute the script the first step is to validate by clicking the highlighted button in the below image.

The return can be OK or error. If the return is OK you can create the stack. To do this clicking the highlighted button in the below image.

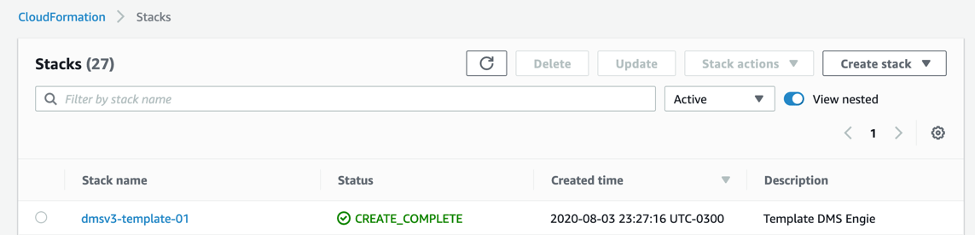

You can check execution events by clicking in the Events page. The return is similar to the image below.

In the next articles, we are going see the source code and to use the AWS DMS Service to replicate data from Oracle Database to RDS PostgreSQL.



Backup and Restore, Cloud Services, Cloud Services | Exadata | Linux, Database

Amazon RDS: How to perform RMAN operations?

 , , , , ,

Hi all,

Need to performa any RMAN Operation from Amazon RDS? Maybe something like validating backups?

Well, we have some options under by using RDSADMIN_RMAN_UTIL package. See below an example for validate backup:

BEGIN
 rdsadmin.rdsadmin_rman_util.validate_database(
 p_validation_type => 'PHYSICAL+LOGICAL',
 p_parallel => 4,
 p_section_size_mb => 10,
 p_rman_to_dbms_output => FALSE);
END;
/

More info about it: https://docs.aws.amazon.com/AmazonRDS/latest/UserGuide/Appendix.Oracle.CommonDBATasks.RMAN.html

Hope it helps, cheers!

Cloud Services, Cloud Services | Exadata | Linux, Database

AWS RDS: Read Oracle Traces from SQL*Plus

 , , , ,

Hi all,

One more for AWS services. Let’s say you need to read tracefiles from RDS, hot to do it?

Here is an example on how to list and read those files:

SQL> select * from dba_directories;

OWNER DIRECTORY_NAME DIRECTORY_PATH ORIGIN_CON_ID
---------- ------------------------- ------------------------------------------------------------ -------------
SYS BDUMP /rdsdbdata/log/trace 0
SYS ADUMP /rdsdbdata/log/audit 0
SYS OPATCH_LOG_DIR /rdsdbbin/oracle/QOpatch 0
SYS OPATCH_SCRIPT_DIR /rdsdbbin/oracle/QOpatch 0
SYS DATA_PUMP_DIR /rdsdbdata/datapump 0
SYS OPATCH_INST_DIR /rdsdbbin/oracle/OPatch 0
SYS TMP /rdsdbdata/userdirs/01 0

7 rows selected.


SQL> select * from table (rdsadmin.rds_file_util.read_text_file( p_directory => 'BDUMP', p_filename => 'trace/CPROD1_s003_81573.trc'));


From the trace file:
=========================
..................................................................................
index undo for leaf key operations
KTB Redo
op: 0x02 ver: 0x01
compat bit: 4 (post-11) padding: 1
op: C uba: 0x000e289e.51da.47
Dump kdilk : itl=98, kdxlkflg=0x1 sdc=0 indexid=0x1c53db block=0x0019bdc0
(kdxlpu): purge leaf row
key :(24):
07 78 76 0c 17 17 09 32 08 c7 07 1a 02 28 15 01 18 06 00 1a 3c 99 00 1e

File 3 is not mirrored.

End dump previous blocks for kdsgrp
* kdsgrp1-2: ***********************************************
kdsDumpState: RID context dump

45511581 rows selected.

SQL> select * from table (rdsadmin.rds_file_util.listdir( p_directory => 'BDUMP')) order by mtime;

FILENAME TYPE FILESIZE MTIME
---------------------------------------- ---------- ---------- ---------
CPROD1_ora_48800.trm file 73 24-DEC-18
CPROD1_ora_48800.trc file 998 24-DEC-18
CPROD1_ora_86597.trc file 998 24-DEC-18
CPROD1_ora_86597.trm file 73 24-DEC-18
CPROD1_ora_7999.trc file 881 24-DEC-18
CPROD1_ora_7999.trm file 71 24-DEC-18
CPROD1_ora_7997.trm file 71 24-DEC-18
CPROD1_ora_7997.trc file 881 24-DEC-18
CPROD1_ora_8240.trm file 71 24-DEC-18
CPROD1_ora_8240.trc file 881 24-DEC-18
CPROD1_ora_8381.trm file 72 24-DEC-18
CPROD1_ora_8381.trc file 995 24-DEC-18
CPROD1_ora_8540.trc file 881 24-DEC-18
CPROD1_ora_8540.trm file 71 24-DEC-18
CPROD1_ora_9876.trc file 881 24-DEC-18
CPROD1_ora_9876.trm file 71 24-DEC-18
CPROD1_ora_11142.trm file 72 24-DEC-18
CPROD1_ora_11142.trc file 883 24-DEC-18
CPROD1_ora_11182.trc file 883 24-DEC-18
CPROD1_ora_11182.trm file 72 24-DEC-18
CPROD1_ora_55077.trm file 73 24-DEC-18
CPROD1_ora_55077.trc file 997 24-DEC-18
CPROD1_ora_92260.trm file 73 24-DEC-18
CPROD1_ora_92260.trc file 997 24-DEC-18
CPROD1_ora_123869.trc file 1000 24-DEC-18
CPROD1_ora_123869.trm file 74 24-DEC-18
CPROD1_ora_41305.trc file 998 24-DEC-18
CPROD1_ora_41305.trm file 73 24-DEC-18
CPROD1_j002_3293.trc file 114049 24-DEC-18
CPROD1_j002_3293.trm file 370 24-DEC-18
CPROD1_mmon_71739.trc file 7511332 24-DEC-18
CPROD1_mmon_71739.trm file 738330 24-DEC-18
CPROD1_ora_92888.trc file 997 24-DEC-18
CPROD1_ora_92888.trm file 73 24-DEC-18
trace/ directory 323584 24-DEC-18
alert_CPROD1.log file 204808 24-DEC-18
CPROD1_ora_70145.trc file 1470 24-DEC-18
CPROD1_ora_70145.trm file 109 24-DEC-18

3845 rows selected.

SQL> select * from table (rdsadmin.rds_file_util.listdir( p_directory => 'BDUMP')) where filename like '%CPROD1_s003_81573.trc%';

FILENAME TYPE FILESIZE MTIME
---------------------------------------- ---------- ---------- ---------
CPROD1_s003_81573.trc file 1948134047 23-DEC-18




























					Cloud Services, Cloud Services | Exadata | Linux, Database, Security, SQL | PLSQL



AWS: ALTER SYSTEM and Managing SYS Objects in RDS










				 , , ,










I’m very often managing services over EC2 and there are a few actions clients are often getting some issues to perform in RDS. So I decided to list here 5 of them:


Kill sessions:


begin
rdsadmin.rdsadmin_util.kill(
sid => &sid,
serial => &serial,
method => 'IMMEDIATE');
end;
/


Flush shared_pool or buffer_cache:


exec rdsadmin.rdsadmin_util.flush_shared_pool;
exec rdsadmin.rdsadmin_util.flush_buffer_cache;




Grant Privileges to SYS Objects


# Grant


begin
    rdsadmin.rdsadmin_util.grant_sys_object(
        p_obj_name  => 'V_$SESSION',
        p_grantee   => 'GREPORA',
        p_privilege => 'SELECT');
end;
/


# Grant with Grant Option


begin
    rdsadmin.rdsadmin_util.grant_sys_object(
        p_obj_name     => 'V_$SESSION',
        p_grantee      => 'GREPORA',
        p_privilege    => 'SELECT',
        p_grant_option => true);
end;
/


# Revoke


begin
    rdsadmin.rdsadmin_util.revoke_sys_object(
        p_obj_name  => 'V_$SESSION',
        p_revokee   => 'GREPORA',
        p_privilege => 'SELECT');
end;
/





Hope it Helps!




























					Cloud Services, Cloud Services | Exadata | Linux, Security



AWS EC2: Custom Functions to Verify Passwords










				 , ,










Hello all!

Looking forward to create password functions on EC2? Easy, we just need to use AWS internal functions for it. Check below an example:


# To create it:


begin
    rdsadmin.rdsadmin_password_verify.create_verify_function(
        p_verify_function_name => 'CUSTOM_PASSWORD_FUNCTION',
        p_min_length           => 12,
        p_min_uppercase        => 2,
        p_min_digits           => 1,
        p_min_special          => 1,
        p_disallow_at_sign     => true);
end;
/


In case you want to double check the code created, here goes a quick trick: Check on DBA_SOURCE:


col text format a150
  select TEXT  from DBA_SOURCE
   where OWNER = 'SYS' and NAME = 'CUSTOM_PASSWORD_FUNCTION' order by LINE;


Hope it helps. Cheers!































					Cloud Services, Cloud Services | Exadata | Linux, Security



AWS EC2: Grant Privileges to SYS Objects










				 , , ,










Hello all!

So quick one today: How to grant and revoke privileges from/to SYS objects on EC2 instances? Do we have the ‘grant option’ for those grants?


Easy, have a look:


# Grant


begin
    rdsadmin.rdsadmin_util.grant_sys_object(
        p_obj_name  => 'V_$SESSION',
        p_grantee   => 'GREPORA',
        p_privilege => 'SELECT');
end;
/


# Grant with Grant Option


begin
    rdsadmin.rdsadmin_util.grant_sys_object(
        p_obj_name     => 'V_$SESSION',
        p_grantee      => 'GREPORA',
        p_privilege    => 'SELECT',
        p_grant_option => true);
end;
/


# Revoke


begin
    rdsadmin.rdsadmin_util.revoke_sys_object(
        p_obj_name  => 'V_$SESSION',
        p_revokee   => 'GREPORA',
        p_privilege => 'SELECT');
end;
/
